Why Back-to-back testing is still needed for floating-point

• While floating point played a minor role in the automotive sector only a few years ago, it is now an integral part of many projects
• However, floating-point is not equal to floating-point
• This article describes how a Back-to-back test helps to find potential issues and what has to be considered for floating-point variables

Introduction

When I started working at BTC Embedded Systems in 2014, floating-point was a rare topic in customer meetings and many control units supported fixed-point only. But since then, floating-point became more and more important and has fully arrived in the projects today.

Back-to-back testing can be used for various use cases but the most common one is to compare a Simulink model vs. auto-generated production code. In the past, this made a lot of sense since the model was usually using floating-point and the code was implemented with fixed-point. The Back-to-back test verified, if the translation from model to code does still lead to the same behavior.

This raises the question, if a floating-point Back-to-back test is still needed, since both model and code use floating-point data types now.

How does floating-point work?

Fixed-point is not a real datatype, it could be described as a ways to implement integer datatypes with a user-defined precision. Please, also read the article What you should know about fixed-point from my colleague Markus Gros for more information.

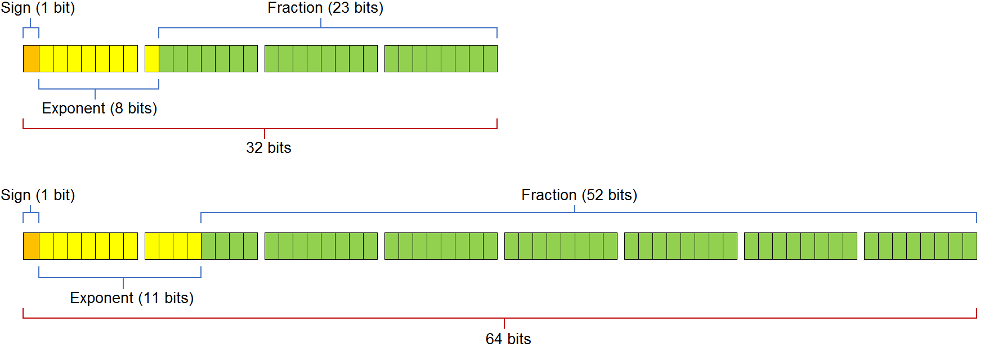

However, this is different for floating-point variables. The available bits are split into 3 different sections to represent the sign, the exponent, and the mantissa (see below).

For the value 1 with a 32-bit floating-point variable (single precision), it looks like this:

• Value: 1
• Actually stored in floating-point: 1
• Binary: 0 01111111 00000000000000000000000
• IEEE 754 (Value): + | 2^0 | 1.0
• IEEE 754 (Encoded): 0 | 127 | 0
• Po2: 1 * 2^0

For the value 0.1 we get the following result:

• Value: 0.1

• Actually stored in floating-point: 0.100000001490116119384765625

• Binary: 0 01111011 10011001100110011001101

• IEEE 754 (Value): + | 2^-4 | 1.600000023841858

• IEEE 754 (Encoded): 0 | 123 | 5033165

• Po2: 3602879701896397 * 2^-55

Based on the concept of mantissa and exponent, the above example shows that it can be a problem to represent several exact values like 0.1. If you want to know more about floating-point variables, please check out my article What you should know about floating-point .

If you want to check out more values, please, have a look at the following website: https://www.h-schmidt.net/FloatConverter/IEEE754.html and try 0.2 or 16,777,217

What influences a floating-point value?

In addition to the fact that specific values might not be representable with floating-point data types, there are additional influences on how a value is handled in a calculation like

• Rounding methods

• Optimization

• Precision (depending on the CPU)

Each compiler with floating-point support provides settings to define how the code should be handled. The available options might be different for each compiler as well.

In addition, floating-point variables cannot be considered for all operations. If you want to make a comparison like x == 0.1 you will never catch the true case. At least for these situations you will still need to go with fixed-point variables.

How to ensure that no deviant behavior occurs between model and code?

This brings us back to the initial question if a f loating- p oint B ack-to- b ack t est is still needed? As we have seen in the previous text, floating-point arithmetics have a lot of influence factors that might lead to a different results on m odel and c ode level (and even differences when the same code is compiled with different compilers) . To ensure equal structural behavior between model and code, a Back-to- b ack t est is the best option. Since the compiler for floating-point has – in contrast to fixed-point data types – a huge influence on the result, I even suggest to run a Back-to- b ack T est between Model and Processor (MIL vs. PIL) to ensure that the target compiler also handles the code equal to the model and host compiler . The good thing about Back-to- b ack t esting is that it can be fully automized, and does only require user interaction if a deviation is detected.

Conclusion

Floating-point definitely brings several advantages for some use cases and you get rid of the annoying issue of finding the right scaling for fixed-point data types. However, you have to keep in mind that the compiler settings play a big role in floating-point and can be found with a floating-point Back-to-back test.
